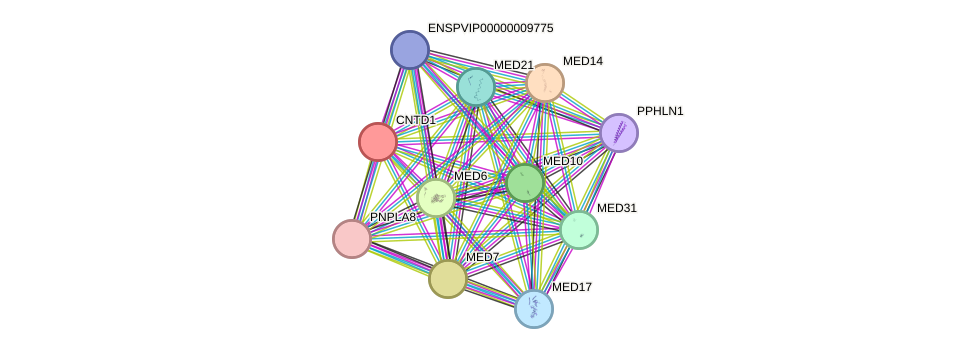

CNTD1 protein (Pogona vitticeps) - STRING interaction network

Nodes:

Network nodes represent proteins

splice isoforms or post-translational modifications are collapsed, i.e. each node represents all the proteins produced by a single, protein-coding gene locus.

Node Color

colored nodes:
query proteins and first shell of interactors

white nodes:
second shell of interactors

Node Content

empty nodes:
proteins of unknown 3D structure

filled nodes:
a 3D structure is known or predicted

Edges:

Edges represent protein-protein associations

associations are meant to be specific and meaningful, i.e. proteins jointly contribute to a shared function; this does not necessarily mean they are physically binding to each other.

Knowledge-based Evidence

from curated databases

textmining

Assay-based Predictions

experimentally determined

co-expression

Genomic Predictions

gene neighborhood

gene co-occurrence

gene fusions

Your Input:

Neighborhood

Gene Fusion

Co-occurrence

Co-expression

Experiments

Databases

Textmining

[Homology]

Score

CNTD1

Cyclin N-terminal domain-containing protein 1. (305 aa)

Predicted Functional Partners:

MED14

0.686

MED7

0.668

WNK3

0.667

MED6

0.666

MED21

0.650

MED10

0.649

MED31

0.640

CUL3

0.629

OXSR1

0.626

STK39

0.626

Your Current Organism:

Pogona vitticeps

NCBI taxonomy Id: 103695
Other names: P. vitticeps, ZMB 30101, central bearded dragon

Export your current network:

... as a bitmap image:

download

file format is 'PNG': portable network graphic

... as a high-resolution bitmap:

download

same PNG format, but at higher resolution

... as a vector graphic:

download

SVG: scalable vector graphic - can be opened and edited in Illustrator, CorelDraw, Dia, etc

... as short tabular text output:

download

TSV: tab separated values - can be opened in Excel and Cytoscape (lists only one-way edges: A-B)

... as tabular text output:

download

TSV: tab separated values - can be opened in Excel (lists reciprocal edges: A-B,B-A)

... as an XML summary:

download

structured XML interaction data, according to the 'PSI-MI' data standard

... protein node degrees:

download

node degree of proteins in your network (given the current score cut-off)

... network coordinates:

download

a flat-file format describing the coordinates and colors of nodes in the network

... protein sequences:

download

MFA: multi-fasta format - containing the aminoacid sequences in the network

... protein annotations:

download

a tab-delimited file describing the names, domains and descriptions of proteins in your network

... functional annotations:

download

a tab-delimited file containing all known functional terms of proteins in your network

Browse interactions in tabular form:

node1	node2	node1 accession	node2 accession	node1 annotation	node2 annotation	score
CNTD1	CUL3	ENSPVIP00000001207	ENSPVIP00000010950	Cyclin N-terminal domain-containing protein 1.	Cullin-3 isoform X1.	0.629
CNTD1	MED10	ENSPVIP00000001207	ENSPVIP00000013855	Cyclin N-terminal domain-containing protein 1.	Mediator of RNA polymerase II transcription subunit 10.	0.649
CNTD1	MED14	ENSPVIP00000001207	ENSPVIP00000020239	Cyclin N-terminal domain-containing protein 1.	Mediator of RNA polymerase II transcription subunit 14.	0.686
CNTD1	MED21	ENSPVIP00000001207	ENSPVIP00000003657	Cyclin N-terminal domain-containing protein 1.	Mediator of RNA polymerase II transcription subunit 21.	0.650
CNTD1	MED31	ENSPVIP00000001207	ENSPVIP00000009584	Cyclin N-terminal domain-containing protein 1.	Mediator of RNA polymerase II transcription subunit 31.	0.640
CNTD1	MED6	ENSPVIP00000001207	ENSPVIP00000016788	Cyclin N-terminal domain-containing protein 1.	Mediator of RNA polymerase II transcription subunit 6.	0.666
CNTD1	MED7	ENSPVIP00000001207	ENSPVIP00000032298	Cyclin N-terminal domain-containing protein 1.	Mediator complex subunit 7.	0.668
CNTD1	OXSR1	ENSPVIP00000001207	ENSPVIP00000004683	Cyclin N-terminal domain-containing protein 1.	Serine/threonine-protein kinase OSR1/STK39.	0.626
CNTD1	STK39	ENSPVIP00000001207	ENSPVIP00000034467	Cyclin N-terminal domain-containing protein 1.	STE20/SPS1-related proline-alanine-rich protein kinase.	0.626
CNTD1	WNK3	ENSPVIP00000001207	ENSPVIP00000034944	Cyclin N-terminal domain-containing protein 1.	WNK lysine deficient protein kinase 3.	0.667
CUL3	CNTD1	ENSPVIP00000010950	ENSPVIP00000001207	Cullin-3 isoform X1.	Cyclin N-terminal domain-containing protein 1.	0.629
CUL3	WNK3	ENSPVIP00000010950	ENSPVIP00000034944	Cullin-3 isoform X1.	WNK lysine deficient protein kinase 3.	0.545
MED10	CNTD1	ENSPVIP00000013855	ENSPVIP00000001207	Mediator of RNA polymerase II transcription subunit 10.	Cyclin N-terminal domain-containing protein 1.	0.649
MED10	MED14	ENSPVIP00000013855	ENSPVIP00000020239	Mediator of RNA polymerase II transcription subunit 10.	Mediator of RNA polymerase II transcription subunit 14.	0.996
MED10	MED21	ENSPVIP00000013855	ENSPVIP00000003657	Mediator of RNA polymerase II transcription subunit 10.	Mediator of RNA polymerase II transcription subunit 21.	0.991
MED10	MED31	ENSPVIP00000013855	ENSPVIP00000009584	Mediator of RNA polymerase II transcription subunit 10.	Mediator of RNA polymerase II transcription subunit 31.	0.997
MED10	MED6	ENSPVIP00000013855	ENSPVIP00000016788	Mediator of RNA polymerase II transcription subunit 10.	Mediator of RNA polymerase II transcription subunit 6.	0.997
MED10	MED7	ENSPVIP00000013855	ENSPVIP00000032298	Mediator of RNA polymerase II transcription subunit 10.	Mediator complex subunit 7.	0.998
MED10	WNK3	ENSPVIP00000013855	ENSPVIP00000034944	Mediator of RNA polymerase II transcription subunit 10.	WNK lysine deficient protein kinase 3.	0.649
MED14	CNTD1	ENSPVIP00000020239	ENSPVIP00000001207	Mediator of RNA polymerase II transcription subunit 14.	Cyclin N-terminal domain-containing protein 1.	0.686
