Export your current network:
... as a vector graphic:
SVG: scalable vector graphic - can be opened and edited in Illustrator, CorelDraw, Dia, etc
... as short tabular text output:
TSV: tab separated values - can be opened in Excel and Cytoscape (lists only one-way edges: A-B)
... as tabular text output:
TSV: tab separated values - can be opened in Excel (lists reciprocal edges: A-B,B-A)
... as an XML summary:
structured XML interaction data, according to the 'PSI-MI' data standard
... protein node degrees:
node degree of proteins in your network (given the current score cut-off)
... network coordinates:
a flat-file format describing the coordinates and colors of nodes in the network
... protein sequences:
MFA: multi-fasta format - containing the aminoacid sequences in the network
... protein annotations:
a tab-delimited file describing the names, domains and descriptions of proteins in your network
... functional annotations:
a tab-delimited file containing all known functional terms of proteins in your network

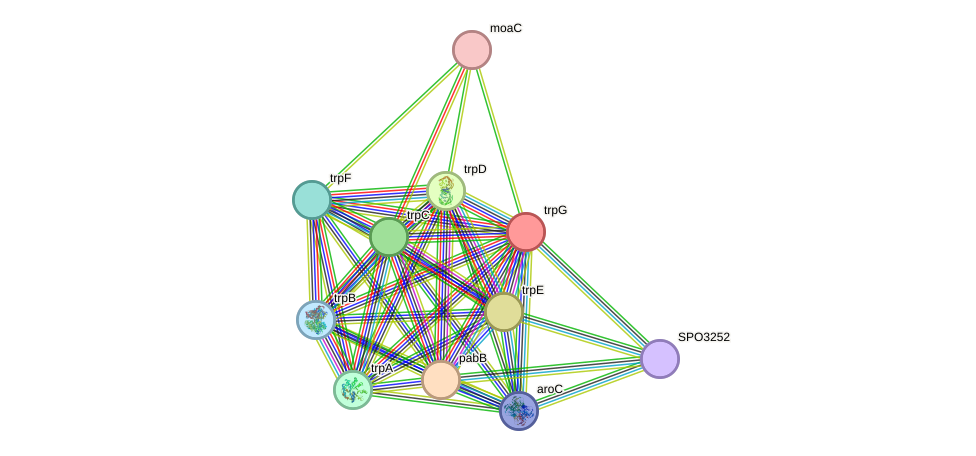

Browse interactions in tabular form:
| node1 | node2 | node1 accession | node2 accession | node1 annotation | node2 annotation | score |
| SPO3252 | aroC | SPO3252 | SPO0267 | Chorismate mutase; Identified by match to protein family HMM PF01817; match to protein family HMM TIGR01795. | Chorismate synthase; Catalyzes the anti-1,4-elimination of the C-3 phosphate and the C-6 proR hydrogen from 5-enolpyruvylshikimate-3-phosphate (EPSP) to yield chorismate, which is the branch point compound that serves as the starting substrate for the three terminal pathways of aromatic amino acid biosynthesis. This reaction introduces a second double bond into the aromatic ring system. | 0.955 |
| SPO3252 | pabB | SPO3252 | SPO0924 | Chorismate mutase; Identified by match to protein family HMM PF01817; match to protein family HMM TIGR01795. | Para-aminobenzoate synthase component I; Identified by match to protein family HMM PF00425; match to protein family HMM TIGR00553. | 0.825 |
| SPO3252 | trpE | SPO3252 | SPO2146 | Chorismate mutase; Identified by match to protein family HMM PF01817; match to protein family HMM TIGR01795. | Anthranilate synthase component I; Part of a heterotetrameric complex that catalyzes the two- step biosynthesis of anthranilate, an intermediate in the biosynthesis of L-tryptophan. In the first step, the glutamine-binding beta subunit (TrpG) of anthranilate synthase (AS) provides the glutamine amidotransferase activity which generates ammonia as a substrate that, along with chorismate, is used in the second step, catalyzed by the large alpha subunit of AS (TrpE) to produce anthranilate. In the absence of TrpG, TrpE can synthesize anthranilate directly from chorismate and high concentr [...] | 0.912 |
| SPO3252 | trpG | SPO3252 | SPO2149 | Chorismate mutase; Identified by match to protein family HMM PF01817; match to protein family HMM TIGR01795. | Anthranilate synthase component II; Identified by similarity to PIR:A01122; match to protein family HMM PF00117; match to protein family HMM TIGR00566. | 0.940 |
| aroC | SPO3252 | SPO0267 | SPO3252 | Chorismate synthase; Catalyzes the anti-1,4-elimination of the C-3 phosphate and the C-6 proR hydrogen from 5-enolpyruvylshikimate-3-phosphate (EPSP) to yield chorismate, which is the branch point compound that serves as the starting substrate for the three terminal pathways of aromatic amino acid biosynthesis. This reaction introduces a second double bond into the aromatic ring system. | Chorismate mutase; Identified by match to protein family HMM PF01817; match to protein family HMM TIGR01795. | 0.955 |
| aroC | pabB | SPO0267 | SPO0924 | Chorismate synthase; Catalyzes the anti-1,4-elimination of the C-3 phosphate and the C-6 proR hydrogen from 5-enolpyruvylshikimate-3-phosphate (EPSP) to yield chorismate, which is the branch point compound that serves as the starting substrate for the three terminal pathways of aromatic amino acid biosynthesis. This reaction introduces a second double bond into the aromatic ring system. | Para-aminobenzoate synthase component I; Identified by match to protein family HMM PF00425; match to protein family HMM TIGR00553. | 0.939 |
| aroC | trpA | SPO0267 | SPO0815 | Chorismate synthase; Catalyzes the anti-1,4-elimination of the C-3 phosphate and the C-6 proR hydrogen from 5-enolpyruvylshikimate-3-phosphate (EPSP) to yield chorismate, which is the branch point compound that serves as the starting substrate for the three terminal pathways of aromatic amino acid biosynthesis. This reaction introduces a second double bond into the aromatic ring system. | Tryptophan synthase, alpha subunit; The alpha subunit is responsible for the aldol cleavage of indoleglycerol phosphate to indole and glyceraldehyde 3-phosphate. Belongs to the TrpA family. | 0.804 |
| aroC | trpB | SPO0267 | SPO0808 | Chorismate synthase; Catalyzes the anti-1,4-elimination of the C-3 phosphate and the C-6 proR hydrogen from 5-enolpyruvylshikimate-3-phosphate (EPSP) to yield chorismate, which is the branch point compound that serves as the starting substrate for the three terminal pathways of aromatic amino acid biosynthesis. This reaction introduces a second double bond into the aromatic ring system. | Tryptophan synthase, beta subunit; The beta subunit is responsible for the synthesis of L- tryptophan from indole and L-serine. | 0.696 |
| aroC | trpC | SPO0267 | SPO2151 | Chorismate synthase; Catalyzes the anti-1,4-elimination of the C-3 phosphate and the C-6 proR hydrogen from 5-enolpyruvylshikimate-3-phosphate (EPSP) to yield chorismate, which is the branch point compound that serves as the starting substrate for the three terminal pathways of aromatic amino acid biosynthesis. This reaction introduces a second double bond into the aromatic ring system. | Indole-3-glycerol phosphate synthase; Identified by similarity to SP:P20577; match to protein family HMM PF00218; Belongs to the TrpC family. | 0.600 |
| aroC | trpD | SPO0267 | SPO2150 | Chorismate synthase; Catalyzes the anti-1,4-elimination of the C-3 phosphate and the C-6 proR hydrogen from 5-enolpyruvylshikimate-3-phosphate (EPSP) to yield chorismate, which is the branch point compound that serves as the starting substrate for the three terminal pathways of aromatic amino acid biosynthesis. This reaction introduces a second double bond into the aromatic ring system. | Anthranilate phosphoribosyltransferase; Catalyzes the transfer of the phosphoribosyl group of 5- phosphorylribose-1-pyrophosphate (PRPP) to anthranilate to yield N-(5'- phosphoribosyl)-anthranilate (PRA). | 0.650 |
| aroC | trpE | SPO0267 | SPO2146 | Chorismate synthase; Catalyzes the anti-1,4-elimination of the C-3 phosphate and the C-6 proR hydrogen from 5-enolpyruvylshikimate-3-phosphate (EPSP) to yield chorismate, which is the branch point compound that serves as the starting substrate for the three terminal pathways of aromatic amino acid biosynthesis. This reaction introduces a second double bond into the aromatic ring system. | Anthranilate synthase component I; Part of a heterotetrameric complex that catalyzes the two- step biosynthesis of anthranilate, an intermediate in the biosynthesis of L-tryptophan. In the first step, the glutamine-binding beta subunit (TrpG) of anthranilate synthase (AS) provides the glutamine amidotransferase activity which generates ammonia as a substrate that, along with chorismate, is used in the second step, catalyzed by the large alpha subunit of AS (TrpE) to produce anthranilate. In the absence of TrpG, TrpE can synthesize anthranilate directly from chorismate and high concentr [...] | 0.965 |
| aroC | trpG | SPO0267 | SPO2149 | Chorismate synthase; Catalyzes the anti-1,4-elimination of the C-3 phosphate and the C-6 proR hydrogen from 5-enolpyruvylshikimate-3-phosphate (EPSP) to yield chorismate, which is the branch point compound that serves as the starting substrate for the three terminal pathways of aromatic amino acid biosynthesis. This reaction introduces a second double bond into the aromatic ring system. | Anthranilate synthase component II; Identified by similarity to PIR:A01122; match to protein family HMM PF00117; match to protein family HMM TIGR00566. | 0.966 |
| moaC | trpC | SPO2152 | SPO2151 | Molybdenum cofactor biosynthesis protein C; Catalyzes the conversion of (8S)-3',8-cyclo-7,8- dihydroguanosine 5'-triphosphate to cyclic pyranopterin monophosphate (cPMP); Belongs to the MoaC family. | Indole-3-glycerol phosphate synthase; Identified by similarity to SP:P20577; match to protein family HMM PF00218; Belongs to the TrpC family. | 0.966 |
| moaC | trpD | SPO2152 | SPO2150 | Molybdenum cofactor biosynthesis protein C; Catalyzes the conversion of (8S)-3',8-cyclo-7,8- dihydroguanosine 5'-triphosphate to cyclic pyranopterin monophosphate (cPMP); Belongs to the MoaC family. | Anthranilate phosphoribosyltransferase; Catalyzes the transfer of the phosphoribosyl group of 5- phosphorylribose-1-pyrophosphate (PRPP) to anthranilate to yield N-(5'- phosphoribosyl)-anthranilate (PRA). | 0.910 |
| moaC | trpF | SPO2152 | SPO0806 | Molybdenum cofactor biosynthesis protein C; Catalyzes the conversion of (8S)-3',8-cyclo-7,8- dihydroguanosine 5'-triphosphate to cyclic pyranopterin monophosphate (cPMP); Belongs to the MoaC family. | N-(5'phosphoribosyl)anthranilate isomerase; Identified by similarity to SP:Q56320; match to protein family HMM PF00697; Belongs to the TrpF family. | 0.409 |
| moaC | trpG | SPO2152 | SPO2149 | Molybdenum cofactor biosynthesis protein C; Catalyzes the conversion of (8S)-3',8-cyclo-7,8- dihydroguanosine 5'-triphosphate to cyclic pyranopterin monophosphate (cPMP); Belongs to the MoaC family. | Anthranilate synthase component II; Identified by similarity to PIR:A01122; match to protein family HMM PF00117; match to protein family HMM TIGR00566. | 0.893 |
| pabB | SPO3252 | SPO0924 | SPO3252 | Para-aminobenzoate synthase component I; Identified by match to protein family HMM PF00425; match to protein family HMM TIGR00553. | Chorismate mutase; Identified by match to protein family HMM PF01817; match to protein family HMM TIGR01795. | 0.825 |
| pabB | aroC | SPO0924 | SPO0267 | Para-aminobenzoate synthase component I; Identified by match to protein family HMM PF00425; match to protein family HMM TIGR00553. | Chorismate synthase; Catalyzes the anti-1,4-elimination of the C-3 phosphate and the C-6 proR hydrogen from 5-enolpyruvylshikimate-3-phosphate (EPSP) to yield chorismate, which is the branch point compound that serves as the starting substrate for the three terminal pathways of aromatic amino acid biosynthesis. This reaction introduces a second double bond into the aromatic ring system. | 0.939 |
| pabB | trpA | SPO0924 | SPO0815 | Para-aminobenzoate synthase component I; Identified by match to protein family HMM PF00425; match to protein family HMM TIGR00553. | Tryptophan synthase, alpha subunit; The alpha subunit is responsible for the aldol cleavage of indoleglycerol phosphate to indole and glyceraldehyde 3-phosphate. Belongs to the TrpA family. | 0.911 |
| pabB | trpB | SPO0924 | SPO0808 | Para-aminobenzoate synthase component I; Identified by match to protein family HMM PF00425; match to protein family HMM TIGR00553. | Tryptophan synthase, beta subunit; The beta subunit is responsible for the synthesis of L- tryptophan from indole and L-serine. | 0.932 |
page 1 of 5
